Trek Rail 9.8

Trek Rail 9.8
  • Color: Solid Charcoal to Root Beer Ano Decal
  • Color: Gloss Purple Phaze/Matte Raw Carbon
$8,999.99
Size:
Small
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up in the store at your convenience. All bicycles will be assembled free of charge. Any bike purchased through our Pre-Order program will be subject to a 30% restocking fee if cancelled after 7 DAYS of original purchase date. Thank you.

Details

Rail 9.8 is a long-travel carbon electric mountain bike that rips just as hard as our beefiest trail rigs and powers you right back up the mountain. It features awesome upgrades to the suspension, drivetrain, and brakes for exceptional performance on the gnarliest runs.

It's right for you if...
You’re looking for a long-travel carbon e-MTB with high-performance parts. You crave the responsiveness of carbon, the plush feel of high-end suspension, and would rather get all the good stuff now than have to upgrade down the line.

The tech you get
An OCLV Mountain Carbon frame that fully encases a 625Wh battery, a super responsive RockShox ZEB Select+ fork with extra-burly 38mm stanchions and loads of adjustability, a RockShox Super Deluxe Ultimate shock with an updated Thru Shaft damper, a Bosch Performance Line CX 250W motor that assists up to 20 mph, and a Kiox controller. A SRAM GX Eagle drivetrain with an extra-low 52-tooth climbing gear, downhill-rated 4-piston brakes for unflinching descents, and Bontrager Line Comp 30 29er wheels with robust SE5 Team Issue tires that come completely tubeless ready, including sealant.

The final word
This bike features across-the-board upgrades that make it a serious ripper—especially the suspension package. It's built for hammering gnarly descents, then flying right back up again thanks to the powerful Bosch drive system.

Why you'll love it
- The new, better-than-ever Bosch motor is smaller, lighter, and more efficient. It feels more natural while you’re pedaling, and has less drag when you’re not
- The full-color Kiox controller displays ride info, connects with your Bluetooth enabled devices, and has a built-in theft prevention feature
- RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
- Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness, and Active Braking Pivot (ABP)
- Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage

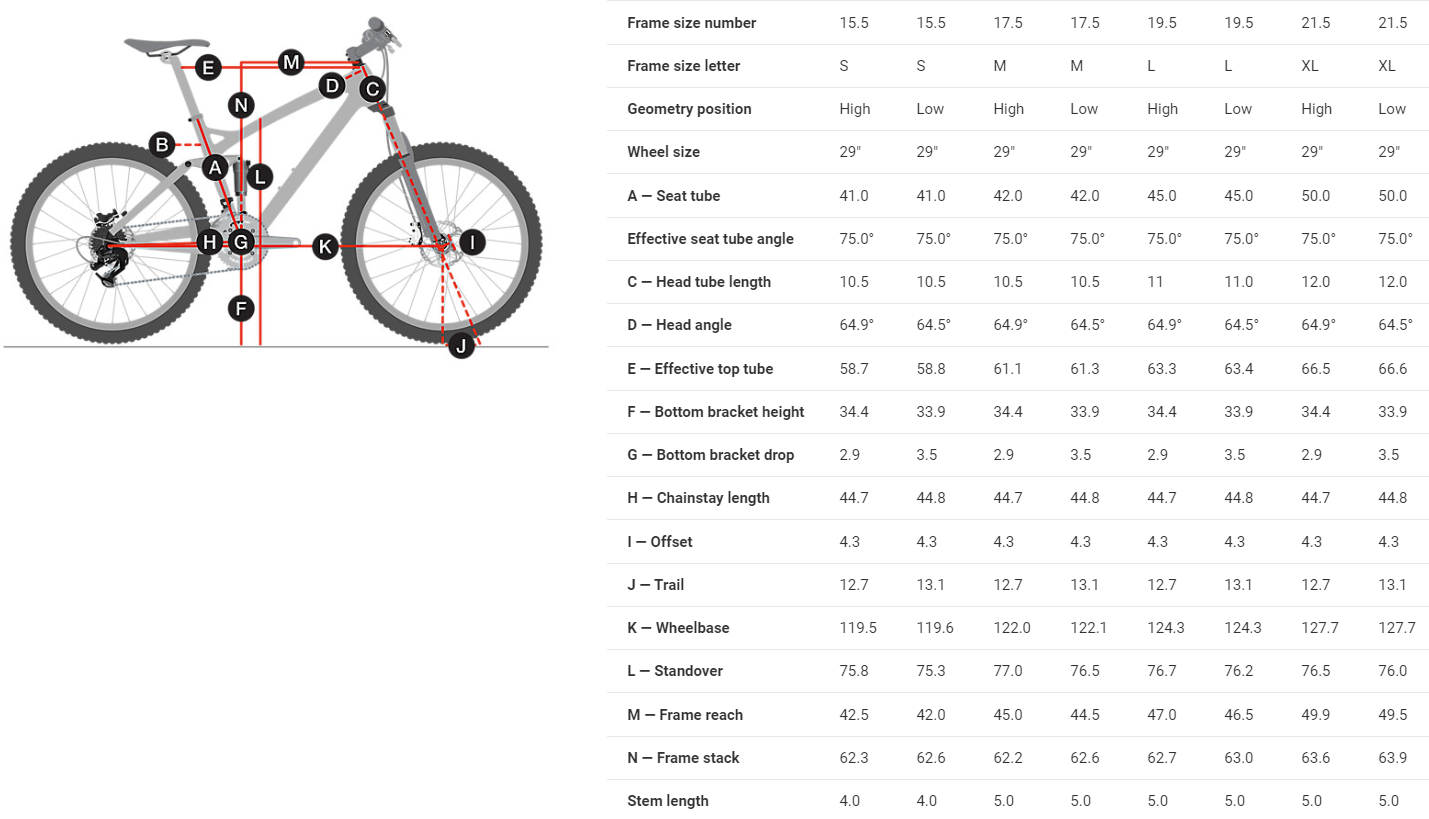

Geometry

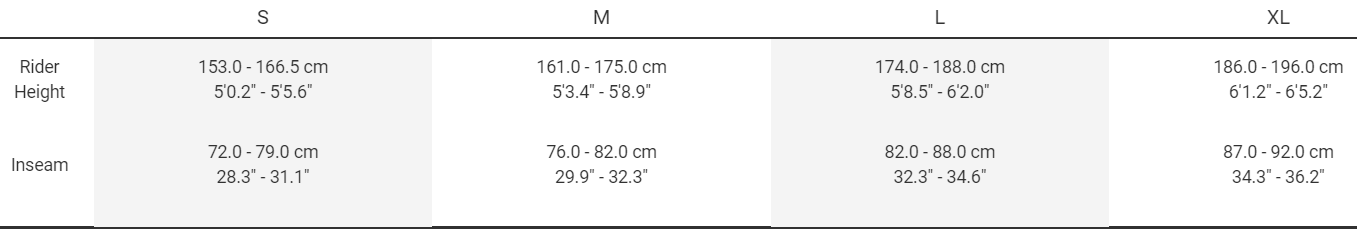

Sizing

Dropper posts

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.

Plus-size rims and tires

Wider than standard yet narrower than fat, plus-size rims and tires hit the sweet spot in grip, stability, and speed, giving you more confidence on technical terrain. Compared to a standard tire you’ll feel grip in places you wouldn’t expect thanks to a bigger contact patch and greater rollover clearance. More air volume allows lower tire pressures which softens bumps and increases float on sand or snow. Whether you’re a novice or an expert, the benefits of plus-size tires and rims will amplify your mountain biking fun.

Specs

Motor Bosch Performance CX, magnesium motor body, 250 watt, 75 Nm
Battery Bosch PowerTube 625
Display Bosch Kiox with Anti-theft solution
Max Assisted Speed 20mph / 32km/h
Charger Bosch standard 4A (100-240V) charger
Frame OCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, 150mm travel
Fork RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44mm offset, 15mm Maxle Stealth, 160mm travel
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Rear Shock NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm
Axles Front: 110 x 15mm thru-axle
Rear: 148 x 12mm thru-axle
Rims/Wheels Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Shimano MicroSpline freehub
Tires Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60''
Crankset SRAM X1 1000, 165mm length
Chainrings 36T
Chain SRAM GX Eagle, 12 speed
Rear Derailleur SRAM GX Eagle
Cassette/Rear Cogs SRAM Eagle XG-1275, 10-52, 12 speed
Shifters SRAM GX Eagle, 12 speed
Handlebars Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Tape/Grips Bontrager XR Trail Elite, alloy lock-on
Stem Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Brakes SRAM Code R 4-piston hydraulic disc w/SRAM CenterLine, 6-bolt, round-edge, 200mm rotors
Pedals VP-536 nylon platform
Saddle Bontrager Arvada, austenite rails, 138mm width
Seat Post Bontrager Line Elite Dropper, internal routing, 31.6mm; Small: 100mm travel; Medium: 150mm travel; Large – X-Large: 170mm travel

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Solid Charcoal to Root Beer Ano Decal / Small 601842467947 1043812 RAI42462742L
Gloss Purple Phaze/Matte Raw Carbon / Small 601842468029 1043804 RAI41658221N
