Details

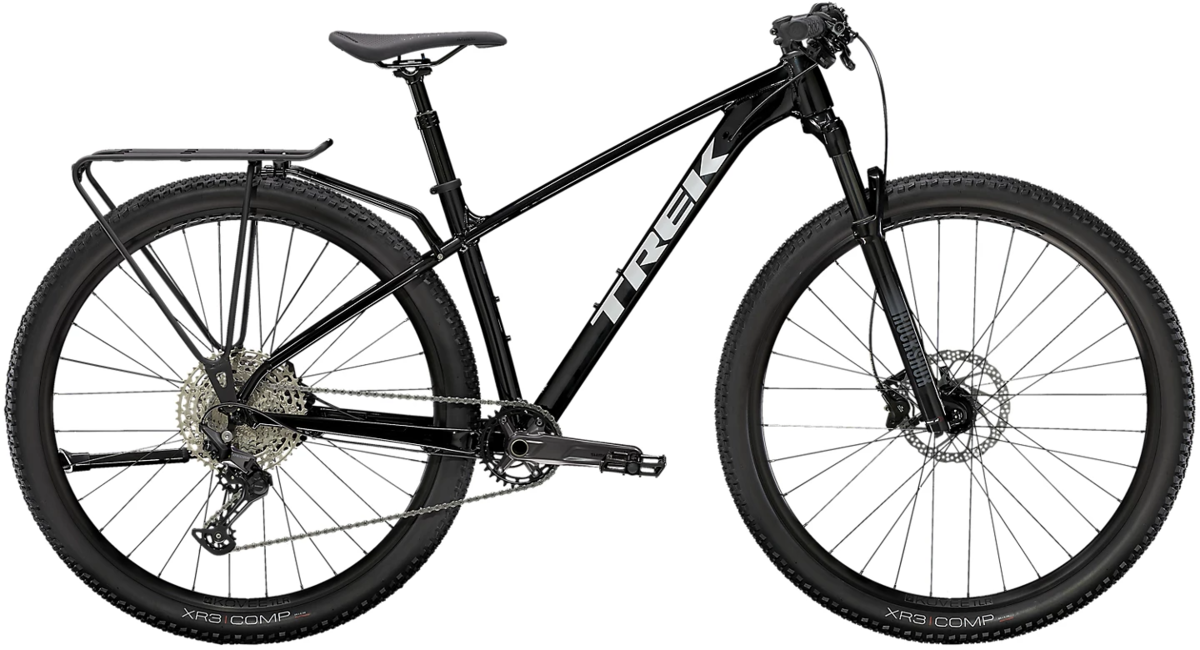

Service is a bike built for those dedicated to serving the public, supporting our communities, and preserving our natural resources. It’s made in Trek's tradition of quality and dependability, with parts that perform on both the trail and road.
It's right for you if...
This bike is designed to serve those who serve others, including police and security officers, EMTs, fire department personnel, park rangers, and forest service employees.
The tech you get
A lightweight alloy frame, a 12-speed Shimano Deore drivetrain with a wide range of gears for climbing, a high-quality RockShox Judy SL suspension fork with 100mm of travel, a dropper post for easier mounts and dismounts, fast-rolling 29" Bontrager wheels, hydraulic disc brakes for all-weather stopping power, and a MIK rear rack.
The final word
This bike is a versatile, reliable partner designed to help public service employees everywhere take care of the communities and public resources they've pledged to protect and serve.
- Easily raise and lower the saddle using the dropper post’s handlebar lever
- The high-quality RockShox fork soaks up bumps on streets and trails alike, and can easily be adjusted for a specific rider weight
- The fork's lockout feature ensures you're always riding efficiently: close it for more speed on smooth pavement, open it up on rougher trails
- Quick release seatpost collar makes it easy to adjust saddle height for different riders

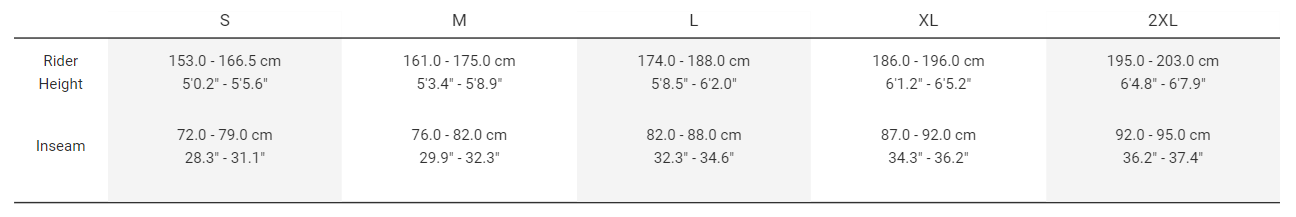

S | M | L | XL | |
---|---|---|---|---|
A. Reach | 38.9 | 41.8 | 45.1 | 46.6 |
B. Stack | 60.2 | 60.2 | 61.1 | 63 |
C. Standover | 74.1 | 74.8 | 75.7 | 76.9 |
D. Effective Top Tube | 56.7 | 60.2 | 63.8 | 65.9 |
E. Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° |
F. Head Tube Length | 9 | 9 | 10 | 12 |
G. Seat Tube Angle | 73.5° | 73.0° | 73.0° | 73.0° |
H. Seat Tube Length | 36.8 | 41.9 | 47 | 52.1 |
I. Bottom Bracket Height | 31.1 | 31.1 | 31 | 31 |
J. Bottom Bracket Drop | 5.8 | 5.8 | 5.8 | 5.8 |
K. Fork Rake/Offset | 4.2 | 4.2 | 4.2 | 4.2 |
L. Trail | 9.3 | 9.3 | 9.3 | 9.3 |
M. Wheelbase | 107.1 | 110 | 113.7 | 115.9 |
O. Chainstay Length | 43.8 | 43.8 | 43.8 | 43.8 |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR |
---|---|
Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46mm offset, 100x5mm QR, 100mm travel |
Rims | Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve |
Hubs |
Front: Bontrager alloy, sealed bearing, 6-bolt disc, 100x5mm QR Rear: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost141, 5mm QR |
Tires | Bontrager XR3 Comp, wire bead, 30tpi, 29" x 2.20 |
Bottom Bracket | Shimano SM-BB52, 73mm, threaded external bearing |
Crankset | Shimano MT511, 32T steel ring |
Shifters | Shimano Deore M6100, 12-speed |
Rear Derailleur | Shimano Deore M6100, long cage |
Cassette/Freewheel | Shimano Deore M6100, 12-speed |
Chain | Shimano Deore M6100, 12-speed |
Brakes | Shimano hydraulic disc, MT4100 lever, MT410 caliper |
Handlebars | Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
Tape/Grips | Bontrager XR Endurance Comp, lock-on |
Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree |
Headset | Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom |
Seatpost | TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
Saddle | Bontrager Arvada, steel rails, 138mm width |
Pedals | Wellgo nylon platform, alloy body |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Trek Black / Small | 601842409718 | 1048051 | POL16343426K |
