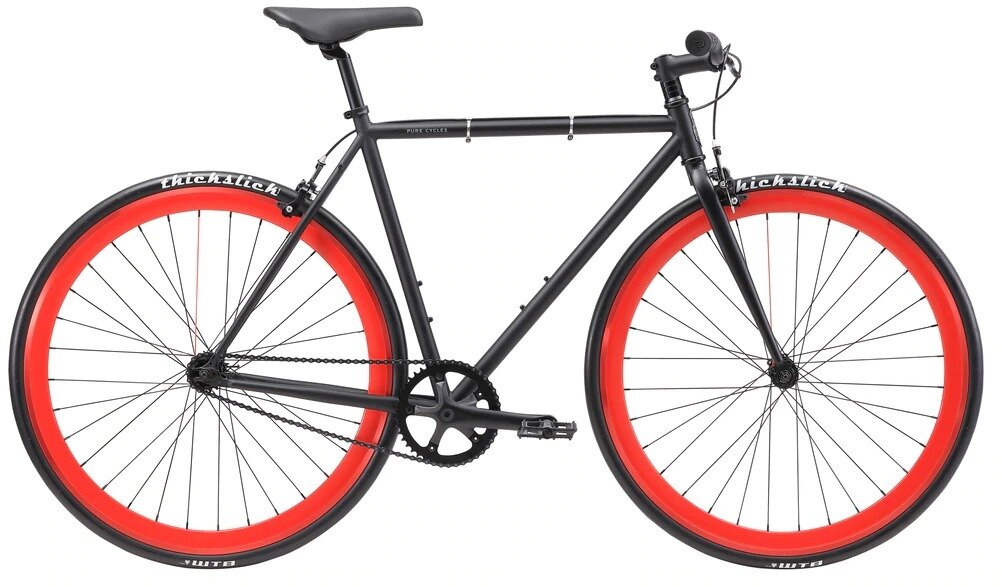

Pure Cycles Original
Details
These are the bikes that started it all—now, they're our best-sellers! Speed, style, and simplicity make these bikes the perfect storm of awesome whether you're starting out, getting back into biking after a few years away, or just want to get a feel for riding fixed!
- 43cm will come with a rear brake, 650c wheels, and 650x23C tires.
Fixed Gear or Freewheel?
We chose a flip-flop rear hub to give you the flexibility to ride fixed or freewheel. Riding fixed gives you an unmatched feeling of connectedness to the bike, the road, and helps you perfect your pedal-stroke. Riding freewheel gives you the ability to coast and cruise, just like the single-speed you grew up on! No matter which you choose to ride, the standard front brake guarantees you can stop either way.

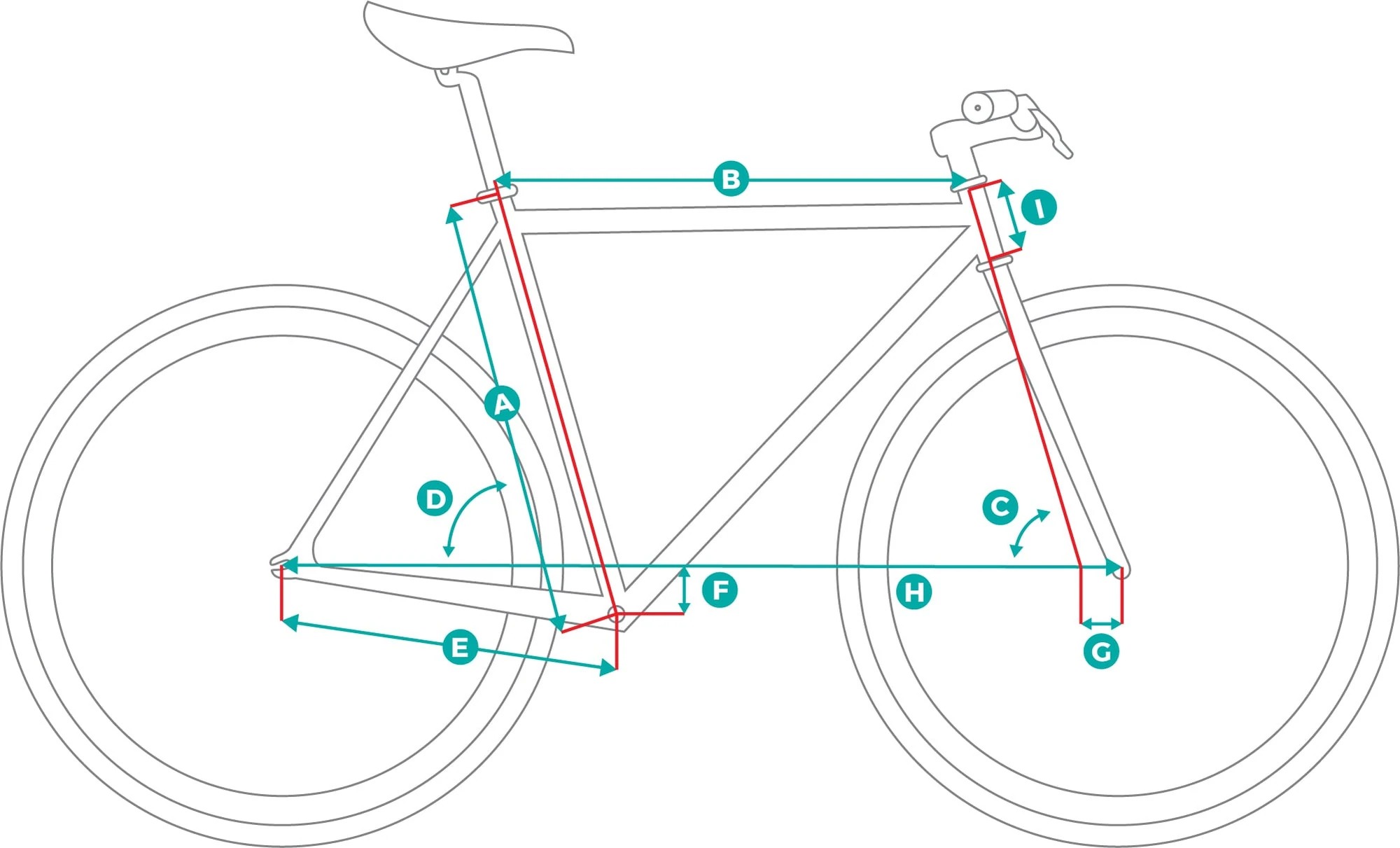

| 43 | 47 | 50 | 54 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|
| A | Seat Tube (C-T) | 430 | 470 | 500 | 540 | 580 | 610 | 640 |
| B | Top Tube (Effective) (mm) | 488 | 525 | 530 | 550 | 580 | 600 | 620 |
| C | Head Angle° | 72.3 | 72 | 72.5 | 73 | 73.5 | 74 | 74 |
| D | Seat Angle° | 74.1 | 74.5 | 74 | 73.5 | 73 | 72.5 | 72.5 |
| E | Chainstay (mm) | 371 | 417 | 417 | 417 | 417 | 417 | 417 |
| F | BB Drop (mm) | 30 | 70 | 70 | 70 | 68 | 68 | 68 |
| G | Fork Offset (mm) | 46 | 45 | 45 | 45 | 45 | 45 | 45 |
| H | Wheel BaseH (mm) | 934 | 981 | 985 | 992 | 1013 | 1022 | 1041 |
| I | Head Tube Length (mm) | 98 | 90 | 90 | 90 | 125 | 145 | 185 |
| Standover (mm) | 690 (27") | 711 (28") | 737 (29") | 770 (30") | 813 (32") | 838 (33") | 864 (34") |
| X-Small | 47 cm | For riders 5'2" to 5'5" with an inseam of at least 28" |
|---|---|---|
| Small | 50 cm | For riders 5'4" to 5'8" with an inseam of at least 29" |
| Medium | 54 cm | For riders 5'7" to 5'11" with an inseam of at least 30" |
| Large | 58 cm | For riders 5'10" to 6'0" with an inseam of at least 32" |
| X-Large | 61 cm | For riders 6' to 6'2" with an inseam of at least 33" |
| XX-Large | 64 cm | For riders 6'2" and up with an inseam of at least 34" |
Specs
| Frame | High-Tensile Steel, TIG-Welded |
|---|---|
| Fork | 1-1/8" High-Tensile Steel, Threadless, Straight Tapered Legs |
| Wheels | 700C x 32H x 14G Alloy-Urban, Bolt-On |
| Rims | 40mm Alloy Rim, Double Wall |
| Hubs | Alloy, 32H x 14G x 3/8" Bolt-On Axle |
| Spokes | 14G Stainless Steel |
| Tires | WTB Thick Slick 700c x 28mm, Black Wall |
| Bottom Bracket | Sealed Cartridge, 68 x 110.5mm |
| Crankset | 3-Piece Alloy, 170mm |
| Cassette/Freewheel | 16T x 1/2" x 1/8" Freewheel |
| Chain | K.M.C. S1, 1/2" x 1/8" 96 Links |
| Brakes | Alloy, 47-57mm Reach, Dual Pivot |
| Brake Levers | Alloy, 3-Finger Lever |
| Handlebars | Alloy, Threadless, 28.6 x 60mm x 7deg x 25.4mm Clamp |
| Tape/Grips | Kraton Rubber, 120mm |
| Stem | Steel, Threadless, 28.6 x 34 x 30mm, Caged Bearings |
| Headset | Steel, Threadless, 28.6 x 34 x 30mm, Caged Bearings |
| Seatpost | Alloy W/Integrated Clamp, 25.4 x 300mm |
| Saddle | Pure Cycles Urban, Steel Rails |
| Pedals | Slip Resistant Top, 9/16" |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Echo / X-Small | 888571080160 | 670993 |
| Echo / Small | 888571080177 | 670994 |
| Echo / Medium | 888571080184 | 670995 |
| Echo / Large | 888571080191 | 670996 |
| India / Small | 888571080207 | 670997 |
| India / Medium | 888571080214 | 670998 |
| India / Large | 888571080221 | 670999 |
| Juliet / X-Small | 888571080238 | 671000 |
| Juliet / Small | 888571080245 | 671001 |
| Juliet / Medium | 888571080252 | 671002 |
| Juliet / Large | 888571080269 | 671003 |
| Juliet / X-Large | 888571080276 | 671004 |
| Juliet / XX-Large | 888571080283 | 671005 |
| Mike / Small | 888571080290 | 671006 |
| Mike / Medium | 888571080306 | 671007 |
| Mike / Large | 888571080313 | 671008 |
| Mike / X-Large | 888571080320 | 671009 |
| Papa / Small | 888571080382 | 671015 |
| Papa / Medium | 888571080399 | 671016 |
| Papa / Large | 888571080405 | 671017 |
| Romeo / X-Small | 888571080412 | 671018 |
| Romeo / Small | 888571080429 | 671019 |
| Romeo / Medium | 888571080436 | 671020 |
| Romeo / Large | 888571080443 | 671021 |
| Sand / Small | 888571080450 | 671022 |
| Sand / Medium | 888571080467 | 671023 |
| Sand / Large | 888571080474 | 671024 |
| Blue / X-Small | 888571094334 | 671178 |
| Blue / Small | 888571094341 | 671179 |
| Blue / Medium | 888571094358 | 671180 |
| Blue / Large | 888571094365 | 671181 |
| Blue / X-Large | 888571094372 | 671182 |
