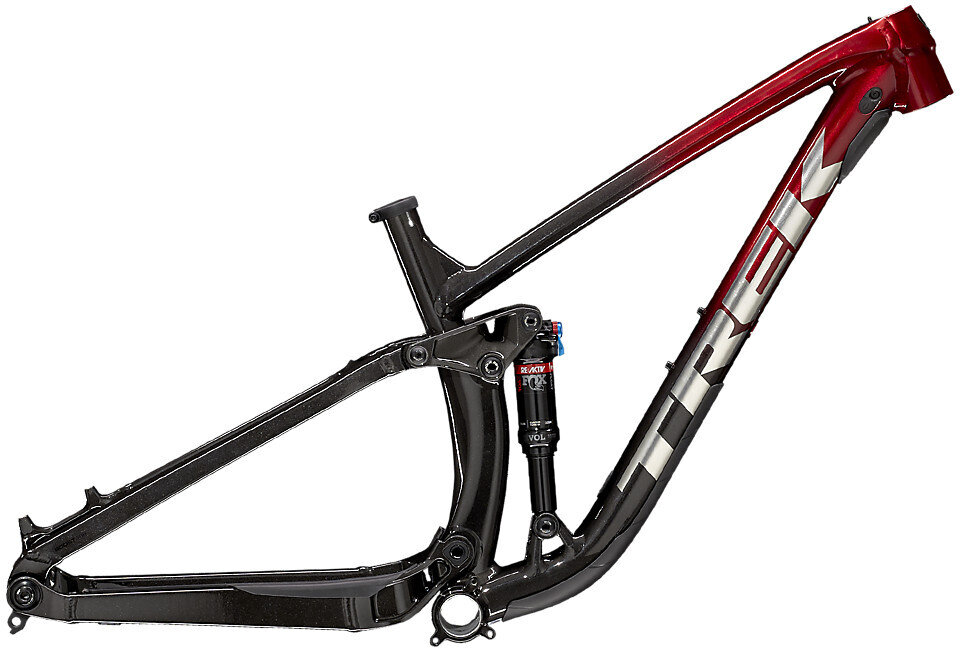

Trek Fuel EX Al Frameset

Trek Fuel EX Al Frameset
  • Color: Rage Red/Dnister Black Fade
$2,319.99
Color:
Rage Red/Dnister Black Fade
Wheel Size:
29-inch
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up in the store at your convenience. All bicycles will be assembled free of charge. Any bike purchased through our Pre-Order program will be subject to a 30% restocking fee if cancelled after 7 DAYS of original purchase date. Thank you.

Details

Fuel EX AL is an aluminum full suspension mountain bike frameset that makes the perfect start for a capable trail bike build. Trail-tough alloy tubes, the latest in Trek trail bike frame tech, and a 130mm of travel with a RE:aktiv shock make it a great choice for riders who want a bike that can handle everything from serious all-mountain riding to endurance races.

It's right for you if...
You ride more than one type of trail, so you're searching for a versatile trail bike platform that will give you the best bones for a ride that's quick and fun on a variety of terrain.

The tech you get
A lightweight Alpha Platinum Aluminum frame with 130mm of travel and Mino Link adjustable geometry, a FOX Performance shock with Trek's exclusive RE:aktiv damper, and an included Bontrager Line stem and Knock Block headset that prevents damage to the frame from spinning handlebars and fork crowns. Built for a PF92 bottom bracket and a 140mm fork.

The final word
Fuel EX AL is burly enough for big features but agile enough for fast singletrack sessions. It's a great all-around frameset for the mountain biker who wants to explore all kinds of terrain on a single full suspension trail bike.

Why you'll love it
- RE:aktiv is firm when you're pedaling and plush over bumps
- This bike is perfect for shredding singletrack, hitting drops, and pushing your limits on the longest days
- Control Freak cable management makes it easy to run any combination of controls, like front brake on the right or internal droppers
- We expanded our size range from XS through XL to ensure a better fit for all riders

Wheel size:
- Sizes X-Small – Small: 27.5-inch
- Sizes Small – XX-Large: 29-inch

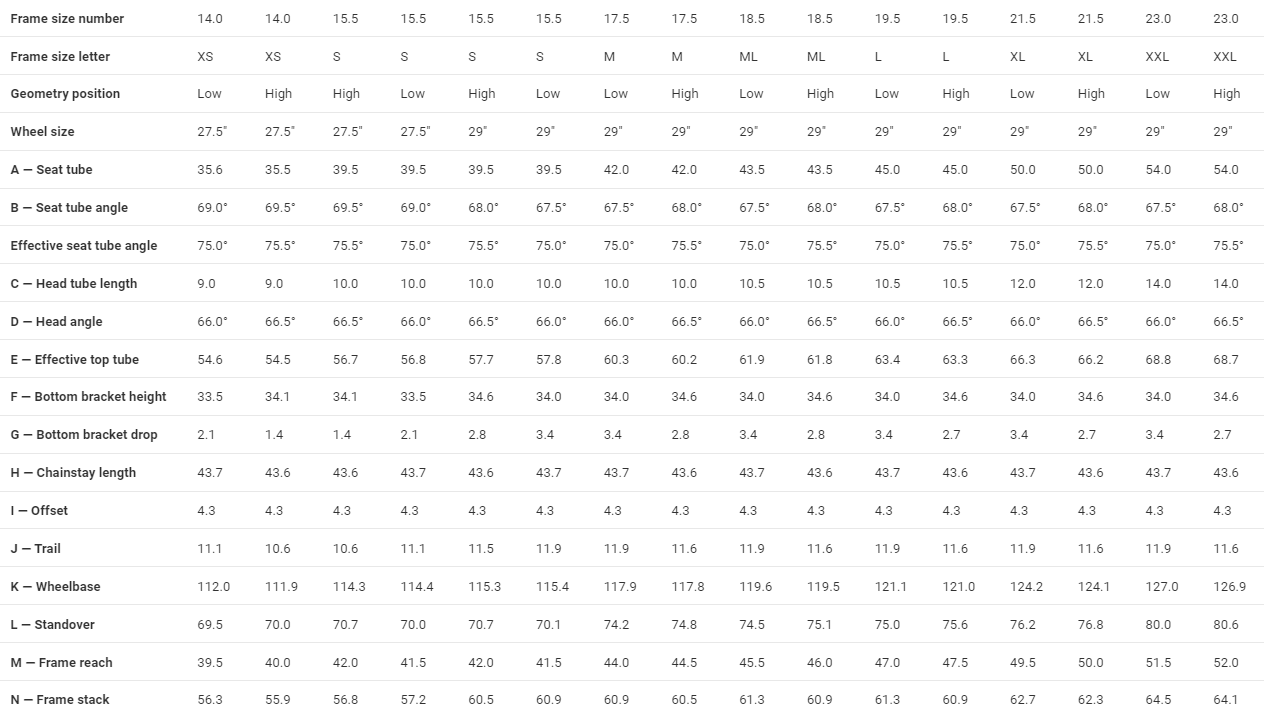

Geometry

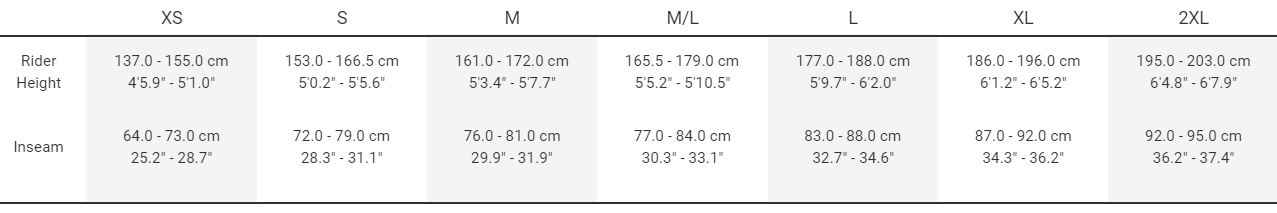

Sizing

Specs

Frame Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Fork Sold separately
Headset Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Rear Shock 27.5-inch: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x52.5mm
29-inch: Fox Performance Float EVOL, RE:aktiv 3-position damper, tuned by Trek Suspension Lab, 210x55mm
Axles Bontrager Switch thru axle
Accessories & Extras Bontrager Line stem, 35mm, Knock Block, 0 degree

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Rage Red/Dnister Black Fade / X-Large / 29-inch 601842376140 1045156 FUE37438720E
Rage Red/Dnister Black Fade / XX-Large / 29-inch 601842376157 1045157 FUE38815421E
