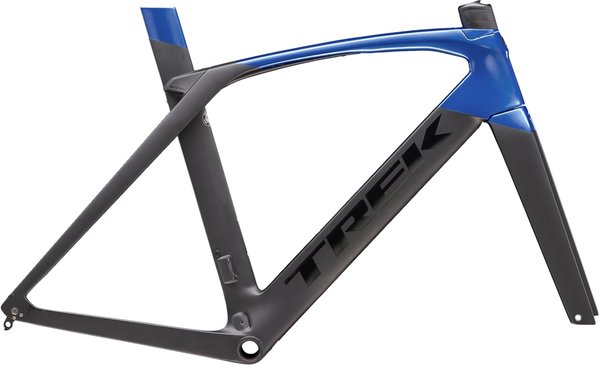

Trek Madone SL Disc Frameset

Trek Madone SL Disc Frameset
$3,629.99
Color:
Matte Black/Gloss Alpine Blue
Size:
62cm
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up in the store at your convenience. All bicycles will be assembled free of charge. Any bike purchased through our Pre-Order program will be subject to a 30% restocking fee if cancelled after 7 DAYS of original purchase date. Thank you.

Details

Madone SL Disc frameset is the ultimate platform for a high-value custom aerodynamic race bike. It's built with our lightweight 500 Series OCLV Carbon layup and Adjustable Top Tube IsoSpeed for an incredibly smooth ride.

It's right for you if...
You want light weight, aerodynamics, and great ride quality in a single road bike frame. Madone SL Disc frameset is the perfect platform for a speed-hungry custom build that’ll help you go faster than ever before.

The tech you get
A lightweight 500 Series OCLV Carbon frame with Kammtail Virtual Foil aerodynamic tube shaping and road-smoothing Adjustable Top Tube IsoSpeed, KVF full carbon fork with tapered steerer and carbon dropouts, BB90 bottom bracket, invisible cable routing, Madone integrated headset, and Madone micro adjust seatmast. Built for disc brakes.

The final word
A high-value, high-speed start to your ultimate race bike build. Madone SL Disc frameset delivers aerodynamics and superior ride quality in a single lightweight frame, and this performance advantage is something you sense from the very first ride.

Why you'll love it
- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it's damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- Let's be honest: this bike looks awesome, like it's breaking speed records even when it's parked at the café for a post-ride espresso
- Disc brakes offer better braking performance and extra clearance for wider, more stable tires

Specs

Frame 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, flat mount disc, Duo Trap S compatible, 142x12mm thru axle
Size 60cm includes control center, precision water bottle placement
Fork Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Axles Front: 100x12mm
Rear: 142x12mm
Bottom Bracket BB90
Wheel Compatibility 700c
Brake Compatibility Disc

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Matte Black/Gloss Alpine Blue / 62cm 601842168776 590827 MAD41647535E
